Description
The JBL EON710 is a highly versatile, active point-source loudspeaker designed to deliver professional-grade audio reinforcement in a compact, easily riggable format. It utilizes a custom 10-inch low-frequency driver paired with a redesigned high-frequency horn, driven by an exceptionally powerful 1,300-watt peak Class D amplification module.
What sets the EON710 apart in its class is the integration of advanced dbx DriveRack DSP, which provides comprehensive system management including Automatic Feedback Suppression (AFS) and parametric EQ. In practical application, the EON710 functions flawlessly as a standalone main speaker for small venues, a high-clarity vocal monitor for loud stages, or a dedicated delay-fill speaker in larger, distributed audio networks.
Its precise waveguide ensures consistent high-frequency coverage, meaning spoken word and sharp transient sounds are delivered with exact articulation, vital for both live music and corporate A/V setups.
Who Is This For?
The EON710 is engineered for working DJs, gigging musicians, and A/V rental houses needing a compact but exceptionally powerful main or monitor wedge. It is ideal for audio professionals who require deep DSP control to ring out difficult rooms, but need a footprint small enough to fit comfortably in a standard passenger vehicle.
Key Features
Amplification & Headroom
The custom-designed 1,300-watt (peak) discrete Class D amplifier provides massive dynamic headroom, ensuring that transient peaks from kick drums or percussive instruments do not cause clipping or distortion. This high power-to-size ratio means the speaker can effortlessly fill medium-sized rooms with clean, undistorted sound, remaining entirely composed even near its maximum output levels.
Advanced dbx DriveRack DSP
The internal processing engine features technology inherited from standalone dbx hardware, including 8-band output EQ and Automatic Feedback Suppression. This allows audio technicians to surgically notch out problematic room frequencies and prevent microphone squeal before it happens, resulting in a cleaner, more professional mix without needing bulky external outboard racks.
Enclosure Durability & Rigging

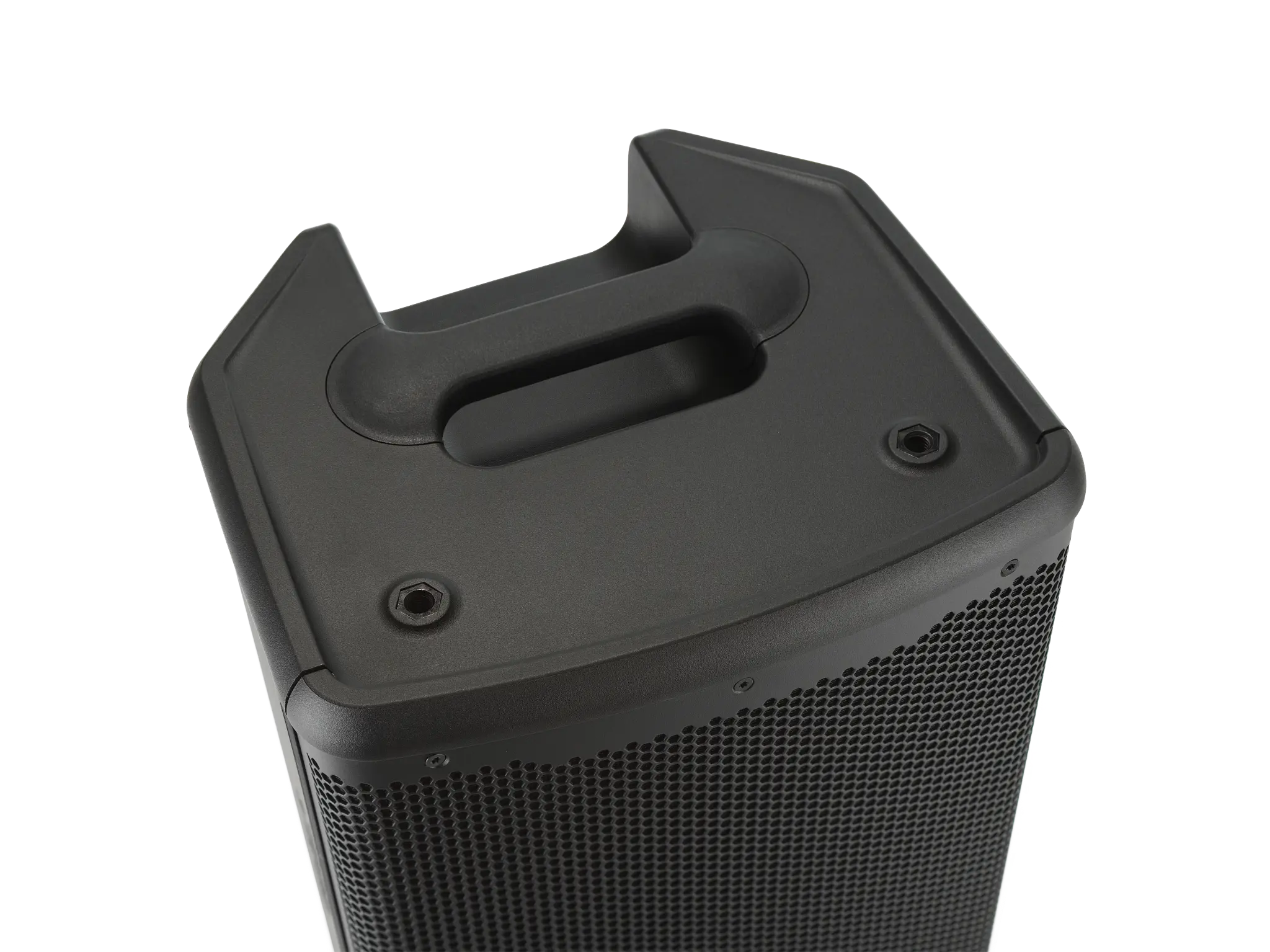

Constructed from a composite material optimized for acoustic resonance, the cabinet is both rugged and surprisingly lightweight. It features multiple suspension points for permanent installation in clubs or houses of worship, and its angled chassis design allows it to be placed securely on its side for use as a dedicated stage floor monitor.
Technical Specifications
| Specification | Details |
| System Type | 10″ Powered PA Loudspeaker |
| Power Rating | 1300W Peak / 650W RMS |
| Max SPL | 125 dB |
| Frequency Response | 52 Hz – 20 kHz (-10 dB) |
| Coverage Pattern | 110° H x 60° V |
| Weight | 11.9 kg (26.2 lbs) |
Professional Powered PA Series Comparison
| Feature | EON710 (10″) | EON712 (12″) | EON715 (15″) |
| Best For | Floor monitoring & small PA | Versatile All-Rounder | High-impact Front of House |
| Max SPL | 125 dB | 127 dB | 128 dB |
| Weight | 11.9 kg (26.2 lbs) | 14.5 kg (32 lbs) | 17 kg (37.5 lbs) |
