Description
*Click & Collect Only*

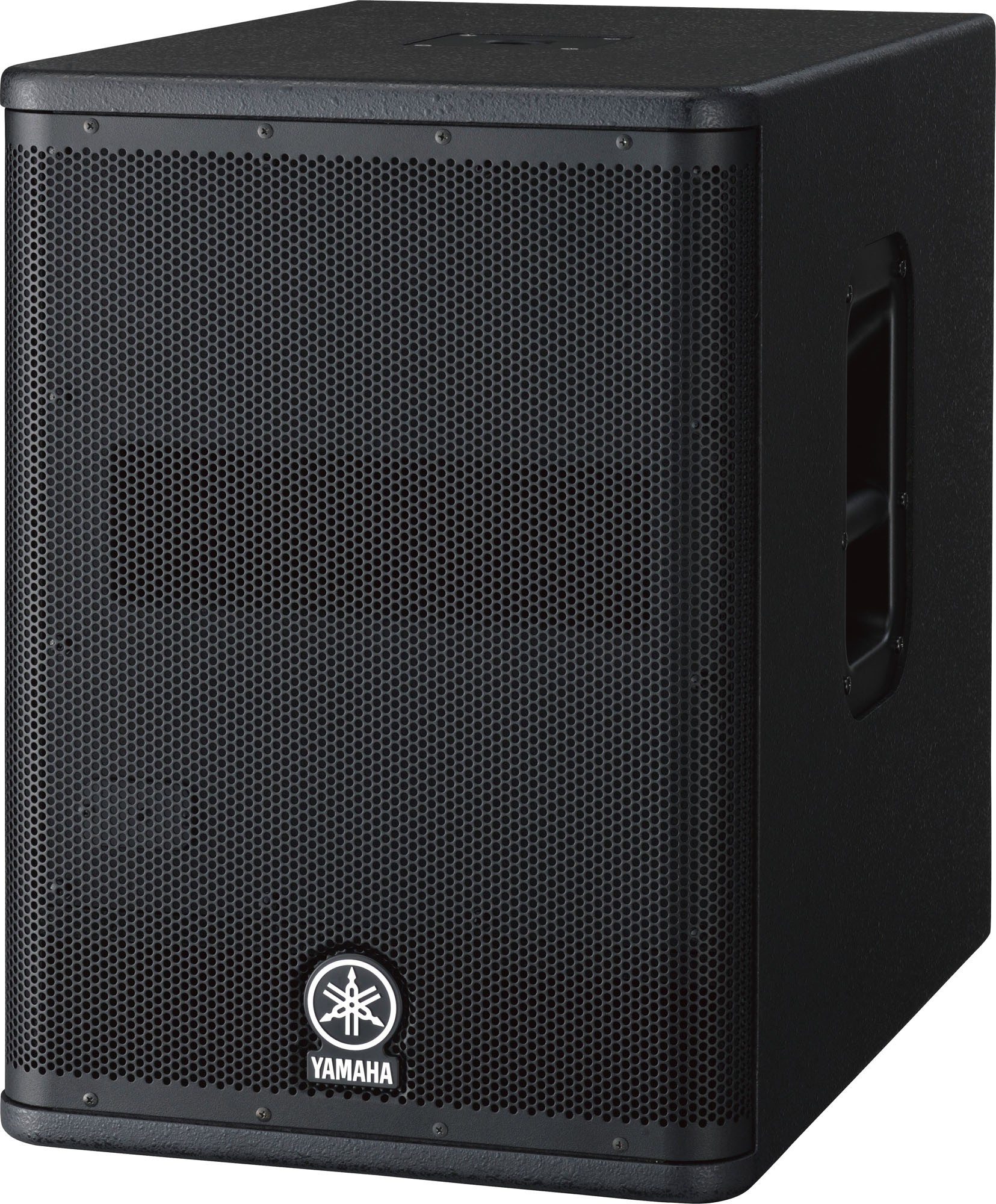

The DXS12 is an extremely compact and powerful subwoofer equipped with a high-efficiency 950W Class-D amplifier and a 12” high-output woofer housed in an acoustically optimized band-pass enclosure. Try out our powerful D-XSUB low frequency processing for low-end you would never expect from a compact 12” subwoofer.
General specifications
|
Speaker type |
12″ powered subwoofer, Band-pass type |
|
|
Frequency range (-10dB) |
47Hz – 160Hz |
|
|
Components |
LF |
12″ cone, Voice Coil:2.5″ |
|
Output power |
Dynamic:950W / Continuous: 600W |
|
|
Maximum output level (1m; on axis) |
131dB SPL |
|
|
I/O connectors |
INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT) |
|
|
Processors |
D-XSUB: BOOST,XTENDED-LF, OFF |
|
|
Cooling |
Fan cooling, 4 speeds |
|
|
Power requirements |
100V – 240V, 50Hz/60Hz |
|
|
Power consumption |
120W |
|
|
Pole socket |
35mm (Top x1) |
|
|
Dimensions |
W |
397mm (15.6″) |
|
H |
563mm (22.2″) |
|
|
D |
594mm (23.4″) |
|
|
Net weight |
33.0kg (72.8lbs) |
|
|
Others |
Material: Wood (LINE-X®, Black) |
|
