Description

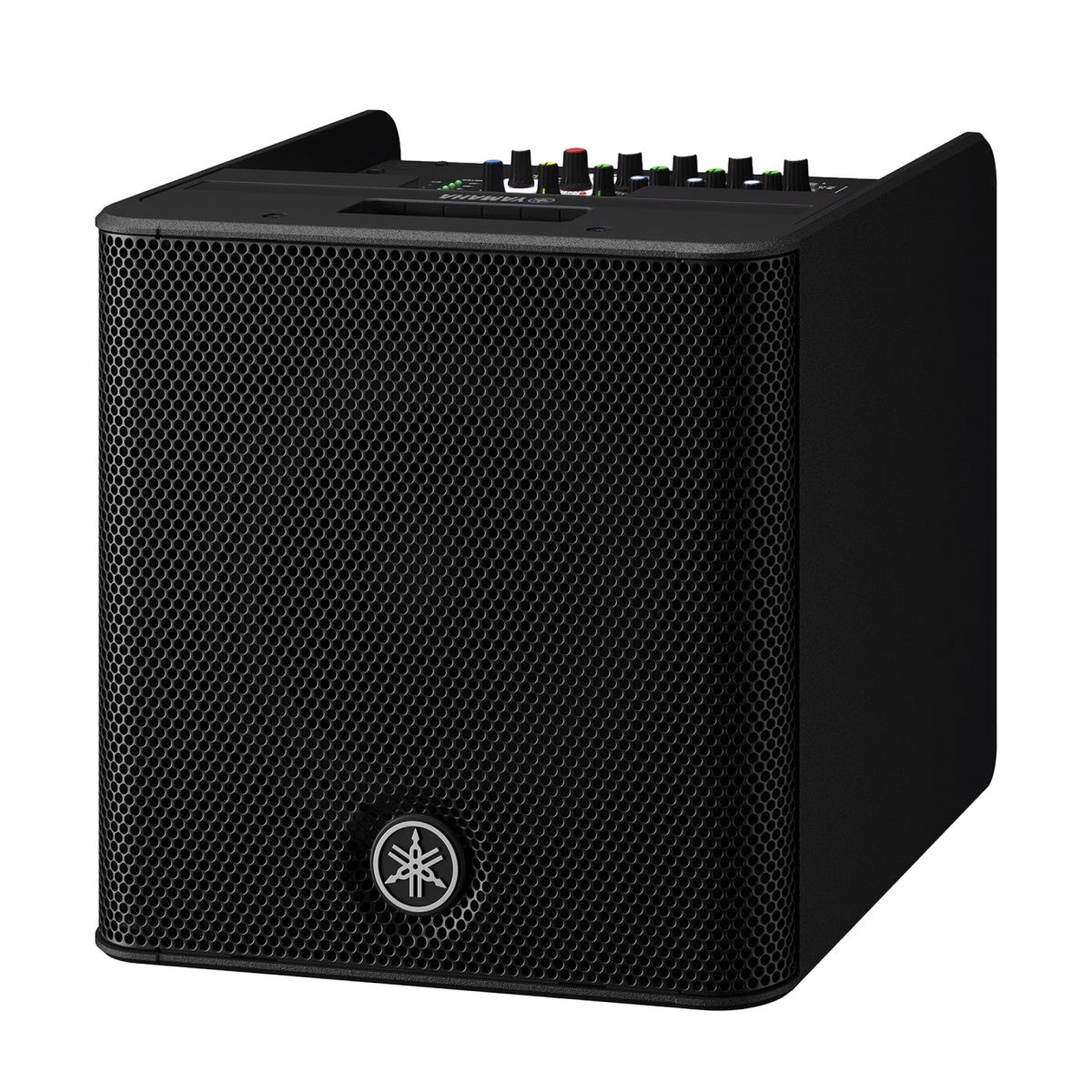

The Yamaha STAGEPAS200 is a compact, highly portable public address system engineered to deliver professional-grade audio reinforcement in a footprint small enough to carry in one hand. Generating 180 watts of Class-D amplification through a premium coaxial compression driver (an 8-inch low-frequency transducer and a 1.4-inch high-frequency voice coil), it occupies a unique space in Yamaha’s PA lineup, bridging the gap between consumer Bluetooth speakers and full-scale modular PA rigs.
It features an integrated 5-channel digital mixer, comprehensive onboard DSP, Hi-Z inputs for instruments, and Bluetooth streaming capability. The primary real-world application for this unit is mobile live performance, acoustic gigs, corporate presentations, and street busking, where rapid deployment, phase-coherent sound projection, and minimal cabling are operational necessities for the user.
Who Is This For?:
This system is strictly tailored for solo musicians, mobile presenters, and acoustic duos who require a self-contained, lightweight PA solution. It directly benefits users needing immediate setup and reliable vocal clarity without the logistical overhead of transporting separate mixing consoles, power amplifiers, and bulky speaker cabinets to smaller venues.
Key Features:
- Coaxial Acoustic Dispersion:
Utilizes a concentric 8-inch woofer and 1.4-inch tweeter arrangement. This specific design ensures that all frequencies emanate from a single point source on the baffle, resulting in superior phase coherence and a highly even, natural sound dispersion across the audience area. In practice, this eliminates the off-axis comb filtering and frequency cancellation commonly experienced with traditional two-way speaker boxes.
- Integrated Digital Mixing & DSP:
Features a 5-channel digital mixer equipped with built-in SPX digital reverb, a 1-knob EQ/preset interface, and a master Mode compensator. This architecture allows performers to instantly adapt the output curve to different environments—from flat speech projection to enhanced low-end for backing tracks—without requiring deep sound engineering knowledge or external outboard equalization gear.
- High-Efficiency Class-D Amplification:
Provides 180 watts of highly efficient, switching power. This amplifier topology significantly reduces the internal weight and thermal heat generation of the unit compared to Class-AB designs. It grants users high sound pressure levels and generous transient headroom, ensuring the system remains incredibly light for transport while preventing distortion during vocal peaks.
Specifications Table:
| Specification | Details |
| System Type | 2-way Coaxial Powered Speaker with Mixer |
| Power Rating | 180W (Class-D) |
| Transducers | 8″ LF Woofer + 1.4″ HF Compression Driver |
| Maximum SPL | 125 dB SPL |
| Mixer Channels | 5 (3 Mono Mic/Line + 1 Stereo Line) |
| Connectivity | Bluetooth Audio, Hi-Z, Combo XLR/TRS |
