Description

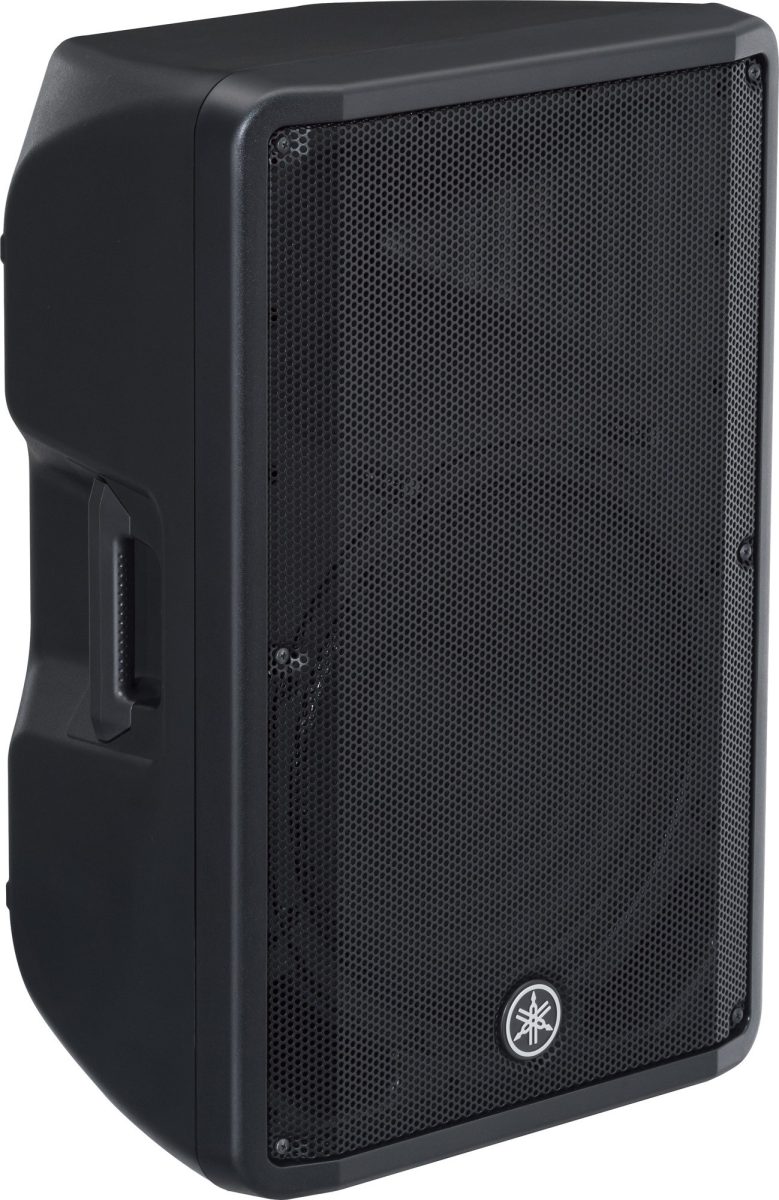

The DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.
|
Speaker type |
2-way, Bi-amp powered speaker, Bass-reflex type |
|
|
Frequency range (-10dB) |
50Hz – 20kHz |
|
|
Nominal coverage |
H |
90° |
|
V |
60° |
|
|
Components |
LF |
Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite |
|
HF |
Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite |
|
|
Crossover |
2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
|
|
Output power |
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
|
|
Maximum output level (1m; on axis) |
132dB SPL |
|
|
I/O connectors |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
|
|
Processors |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|
|
Heat dissipation |
Fan cooling, 4 speeds |
|
|
Power requirements |
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
|
|
Power consumption |
74W(1/8 Power Consumption), 18W(Idle) |
|
|
Cabinet material |
Plastic |
|
|
Finish |
Black |
|
|
Handle |
Side x 2 |
|
|
Flying and mounting hardware |
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
|
|
Pole socket |
35mm (Bottom x 1) |
|
|
Dimensions |
W |
455mm (17.9″) |
|
H |
700mm (27.6″) |
|
|
D |
378mm (14.9″) |
|
|
Net weight |
19.3 kg (42.6 lbs) |
|
